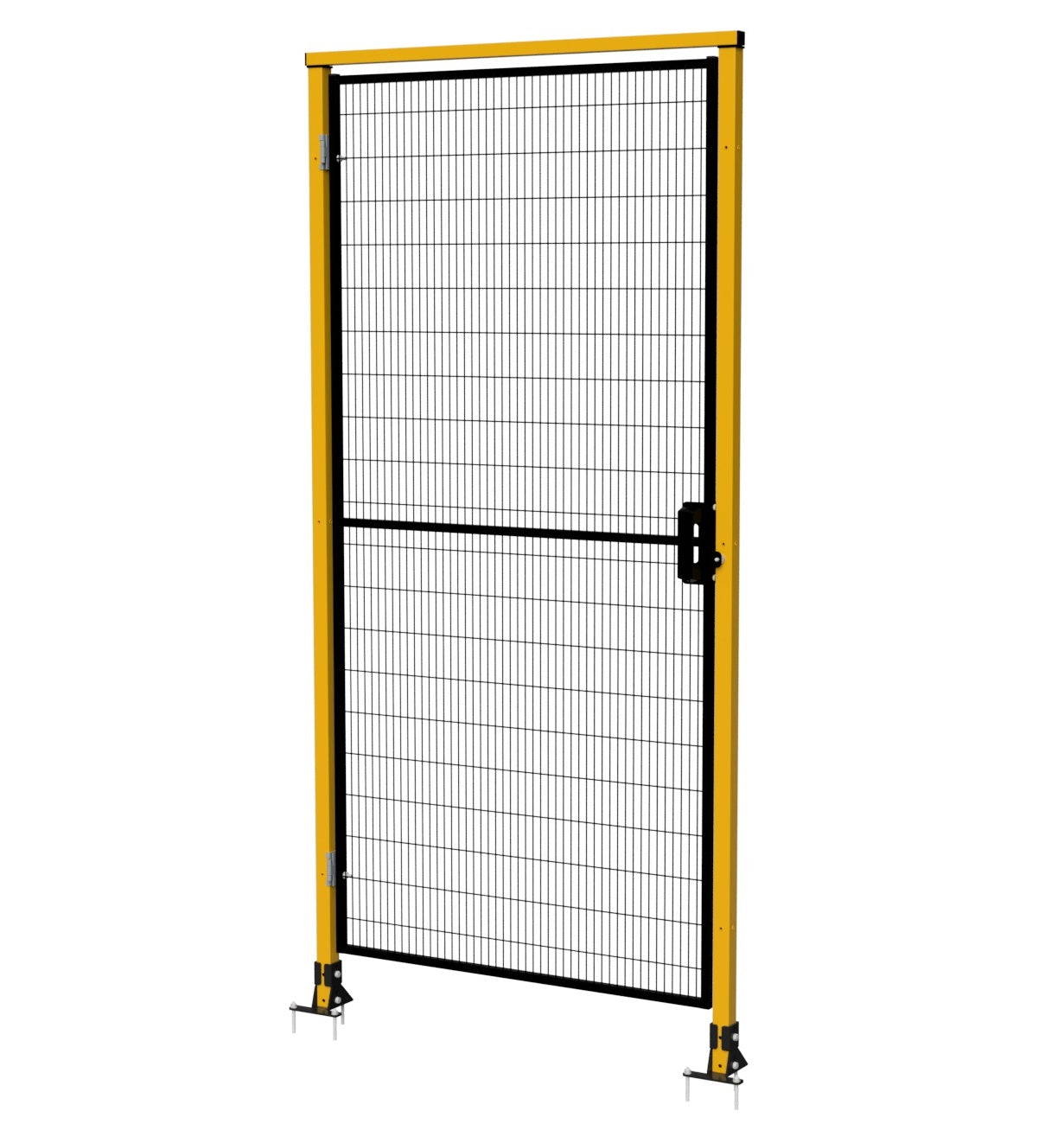

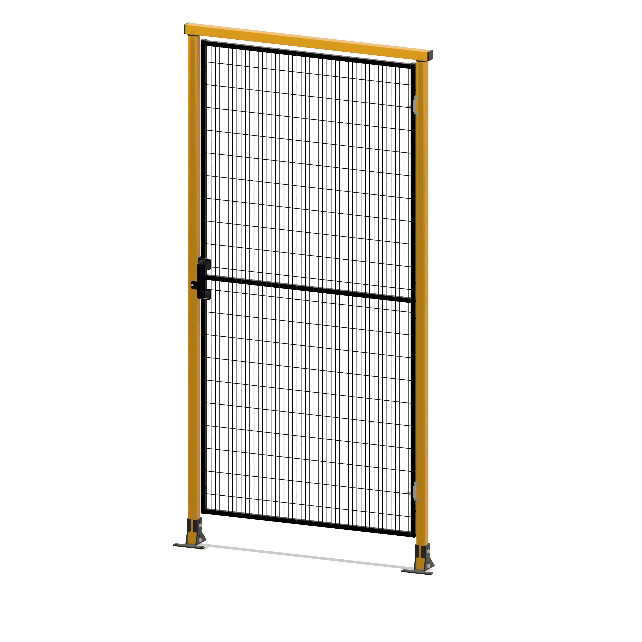

Procter Satech Impact Guard Single Gate

Procter Machine Safety Satech Single Gate

• Gate will come complete and assembled with the gate panel, two gate posts, headrail, handle, magnetic catch and hinges

• This gate will use 2080mm tall panels and 2240mm tall posts.

• Posts and headrail powder coated yellow RAL 1021.
• Panel powder coated black RAL 9005.
• Hole centres to enable easily installation with all post, panel and gate combinations.
• Comes complete with bolted assembly feet.

Gate panel width is optional, choices being 700mm, 800mm, 1000mm, 1200mm and 1500mm.

Gate post width is also optional, choices being 40x40mm posts or 60x60mm posts.

Total Gate width is made up from Panel Width + Post width (X2) + Door Spacing of 25mm.

For further advice, questions, modifications (sizes, cut outs, colour), double sliding gates or more please enquire through the contact page.
