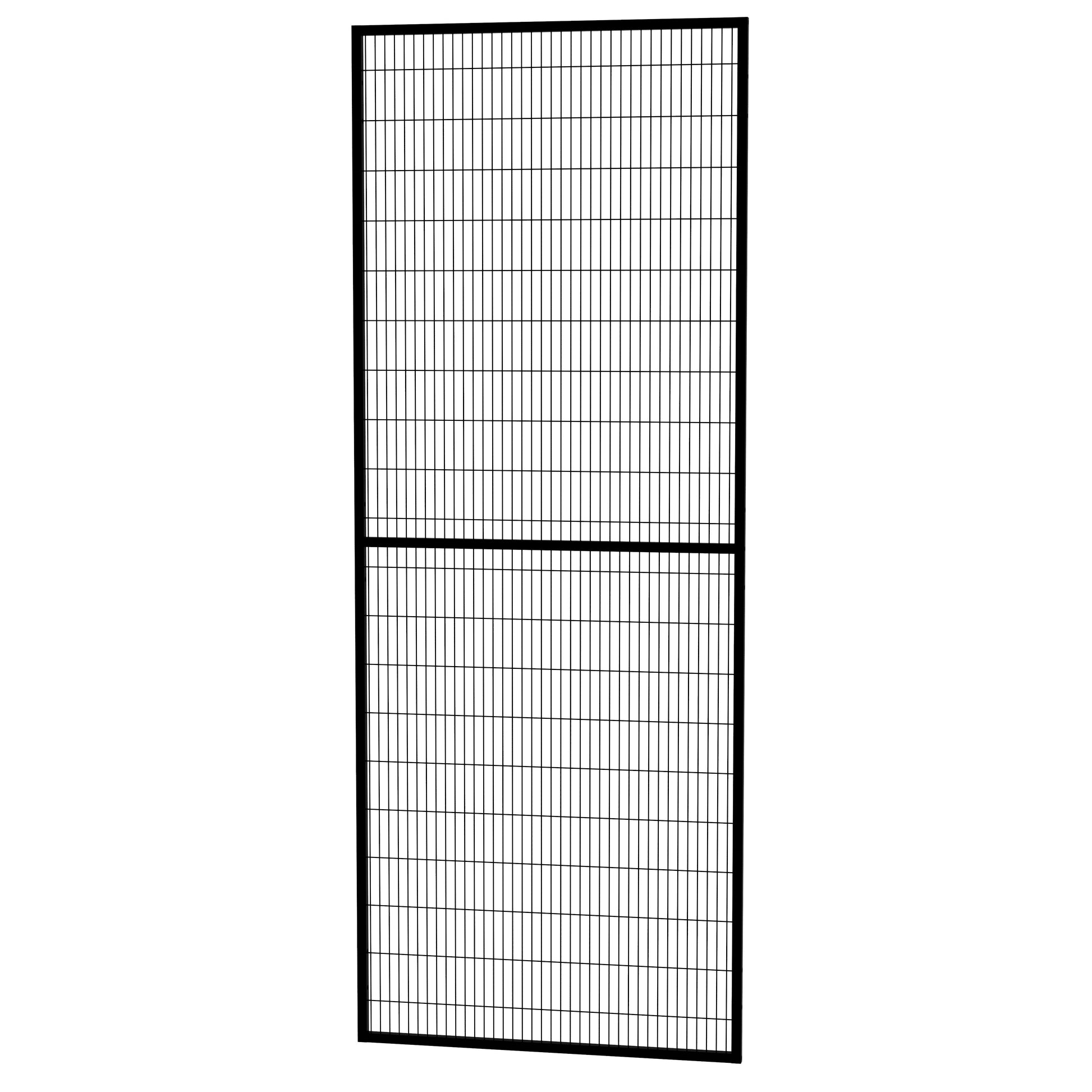

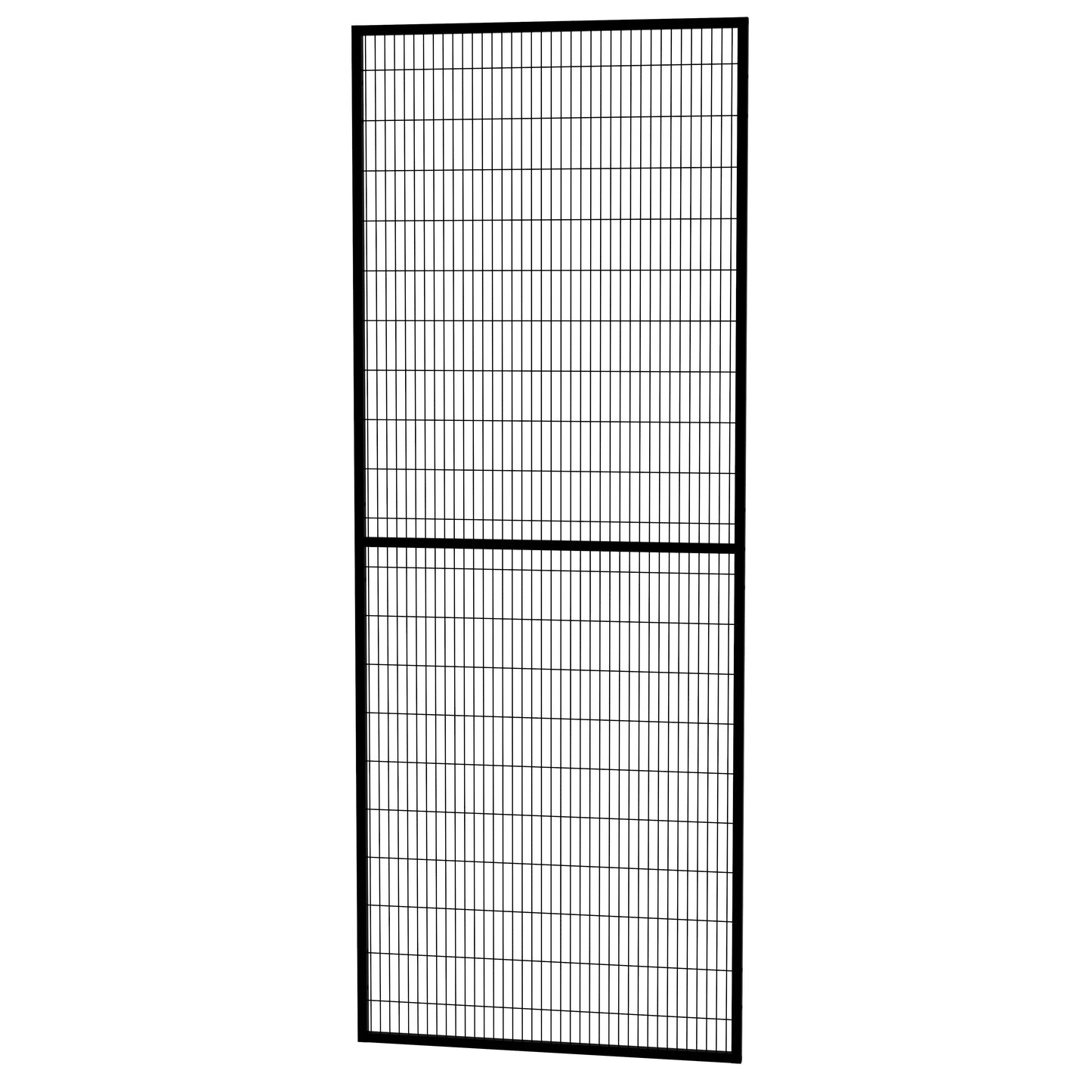

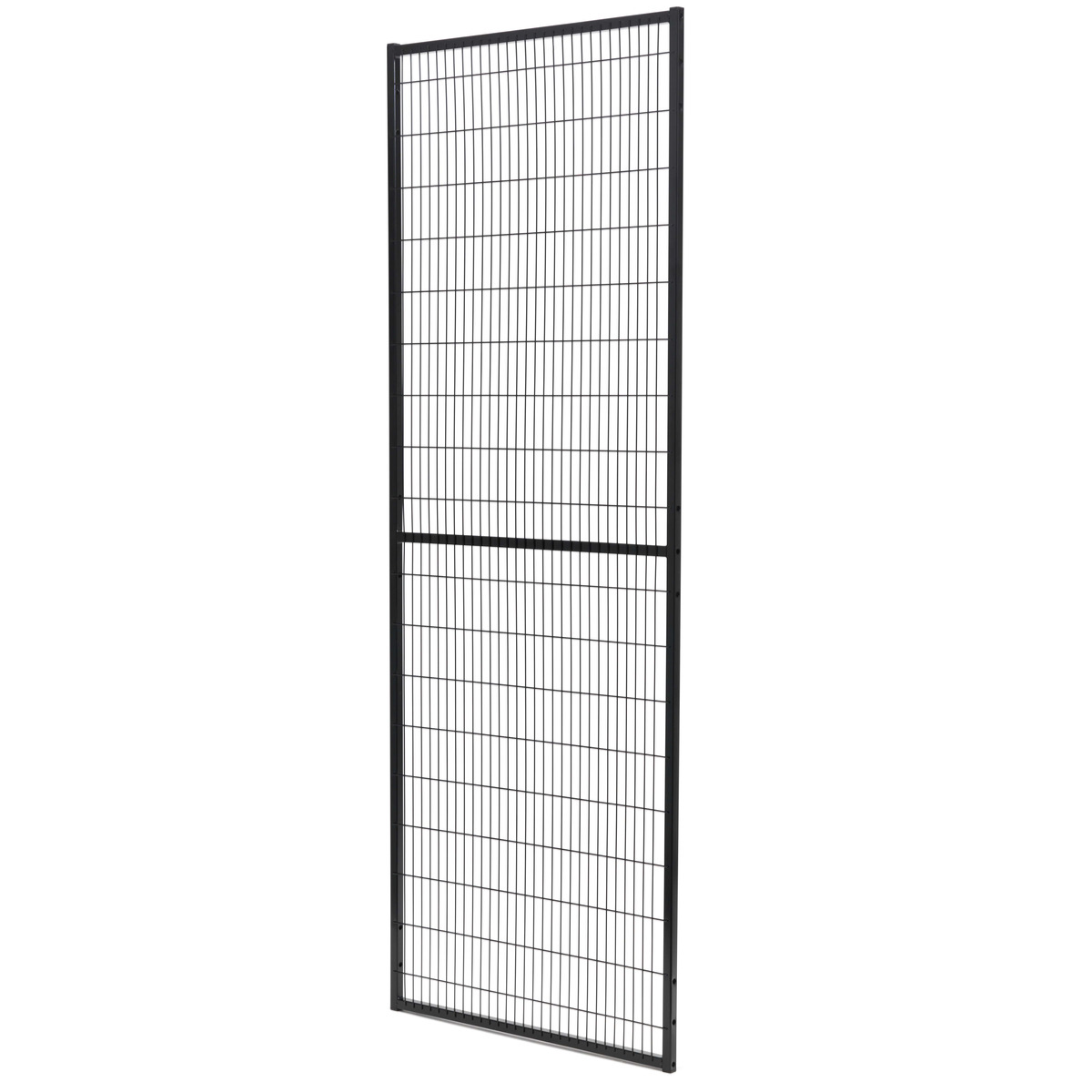

Procter Satech Guarding Panel (2080 mm Height)

Procter Machine Safety Satech Basic Panel

• 20 x 20mm Box Section Frame.
• 100 x 20mm Mesh (17 x 97 mm mesh aperture).

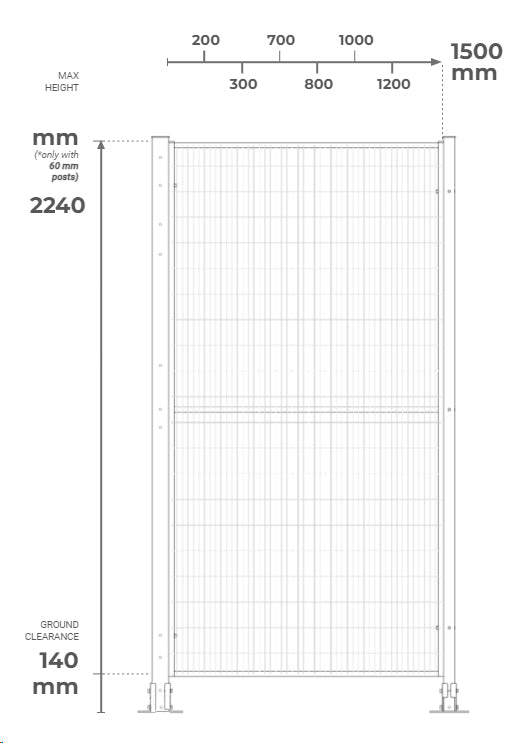

• 2080 mm Tall (matches up with 2240 mm tall posts, leaving 140 mm gap at bottom and 20 mm gap at top).

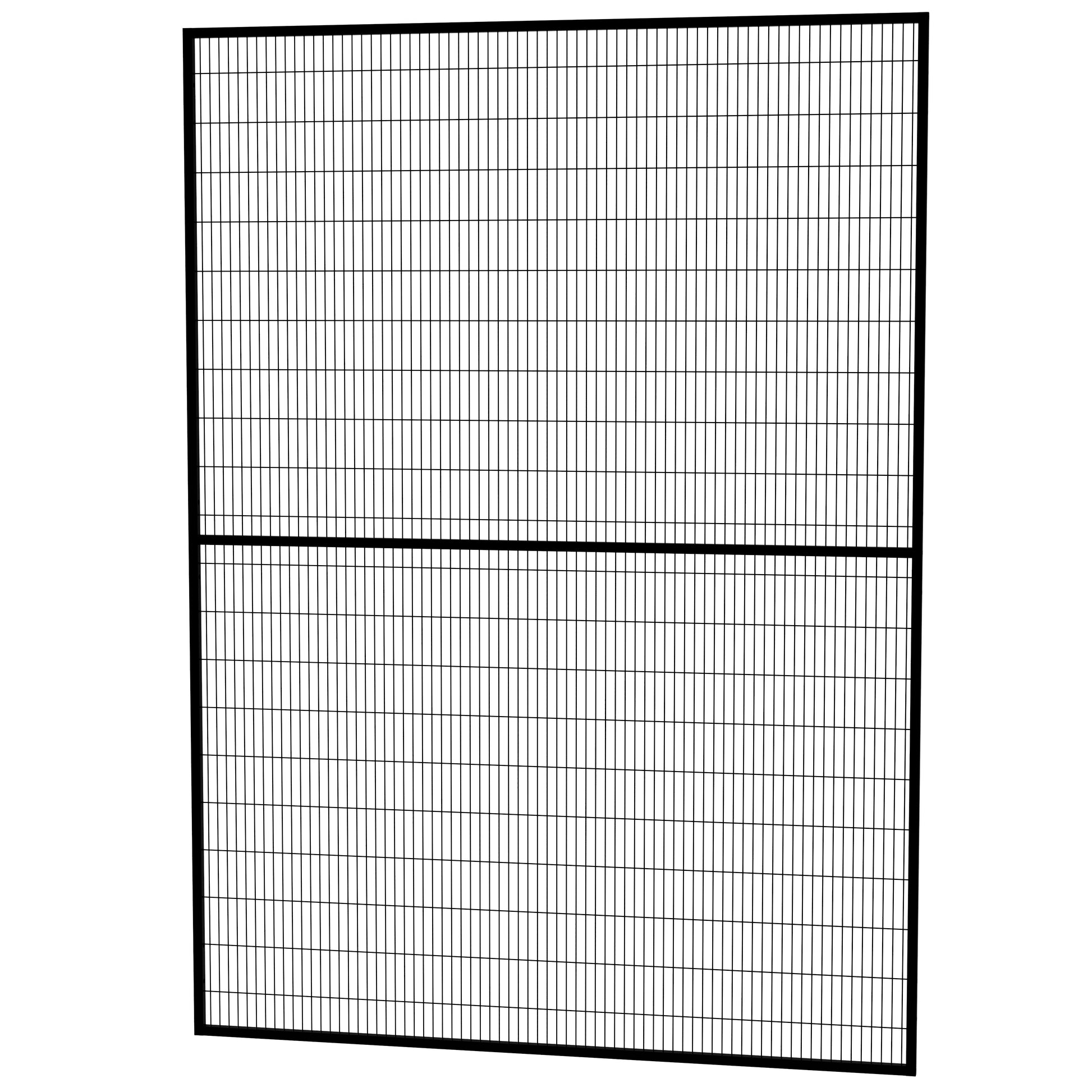

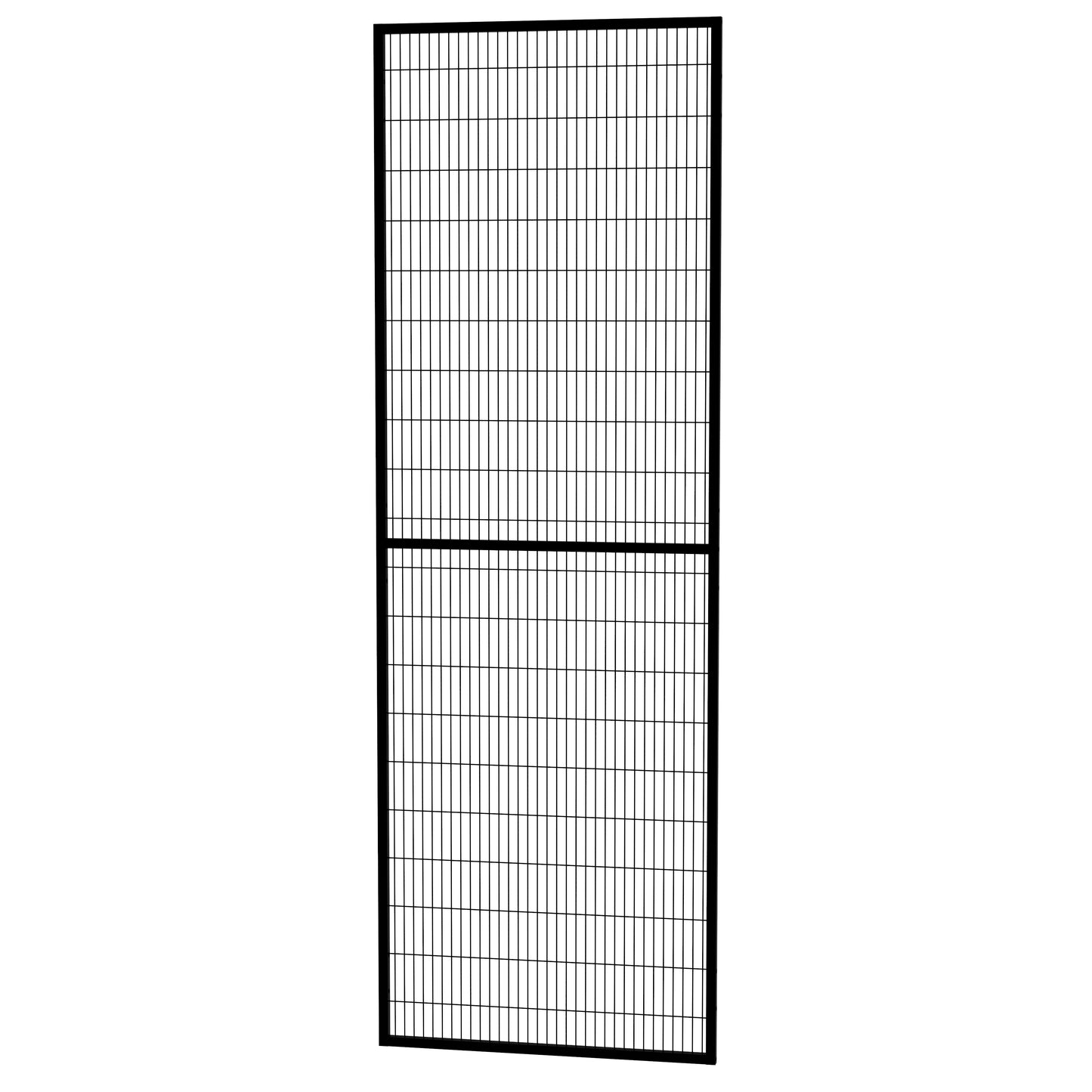

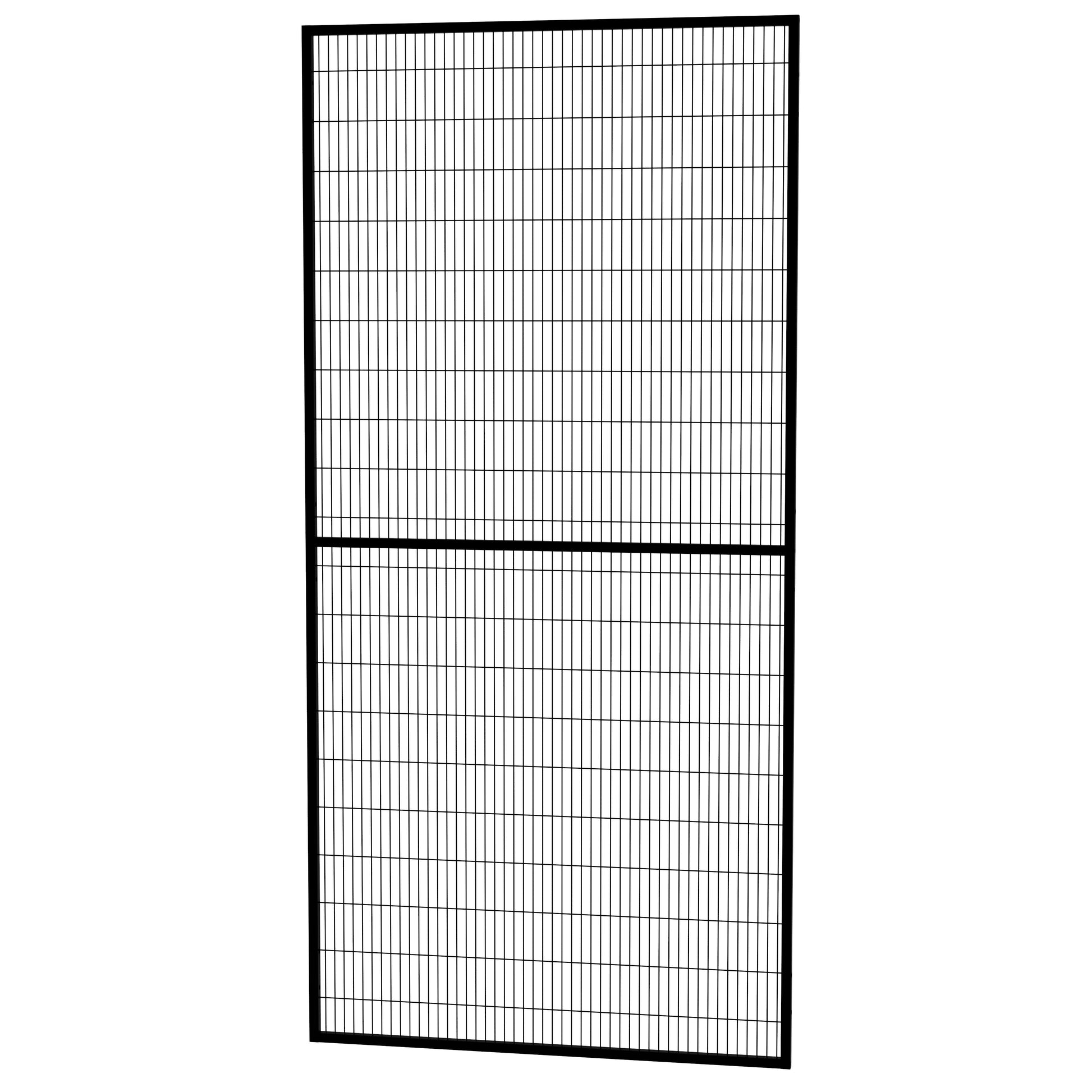

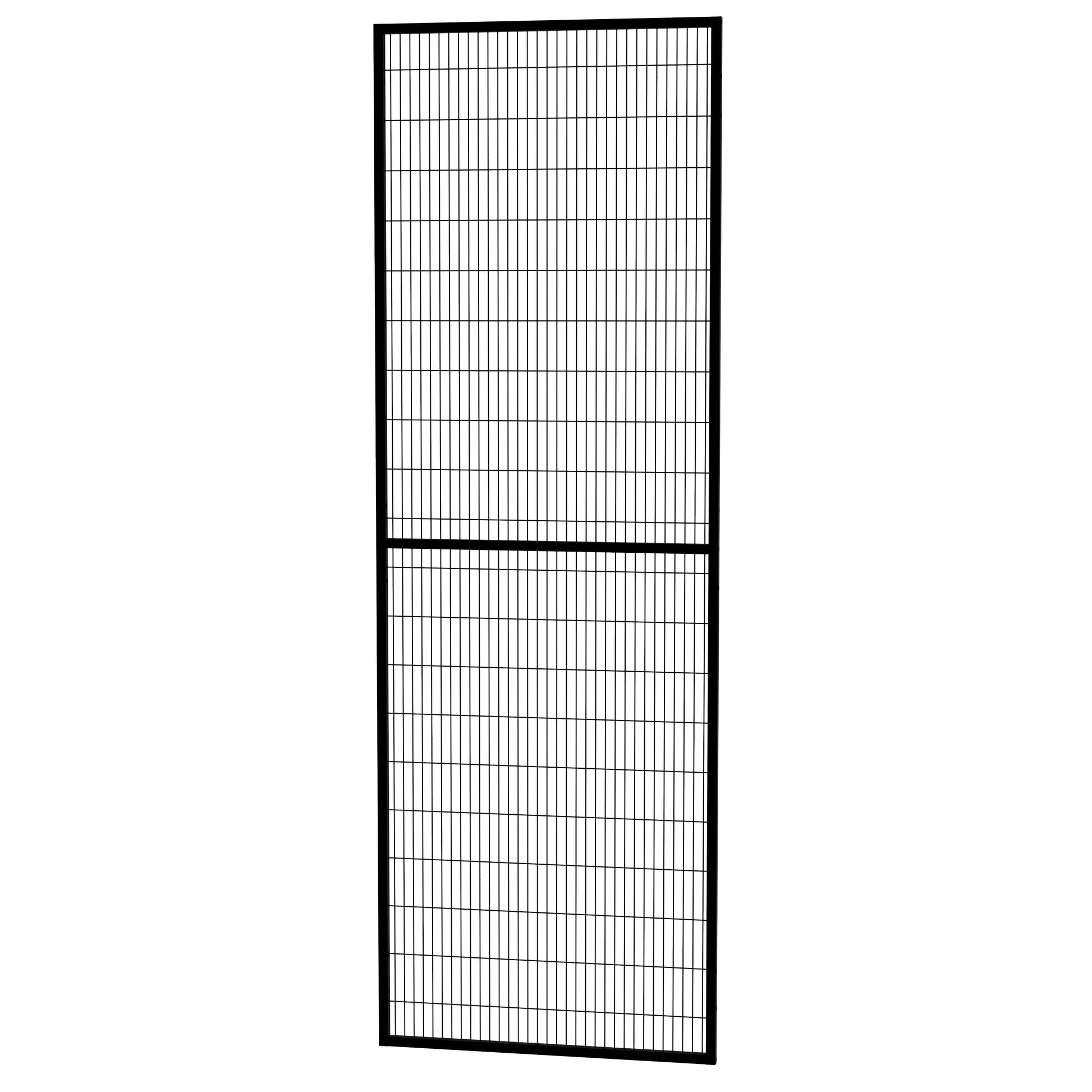

• Various panel widths available:

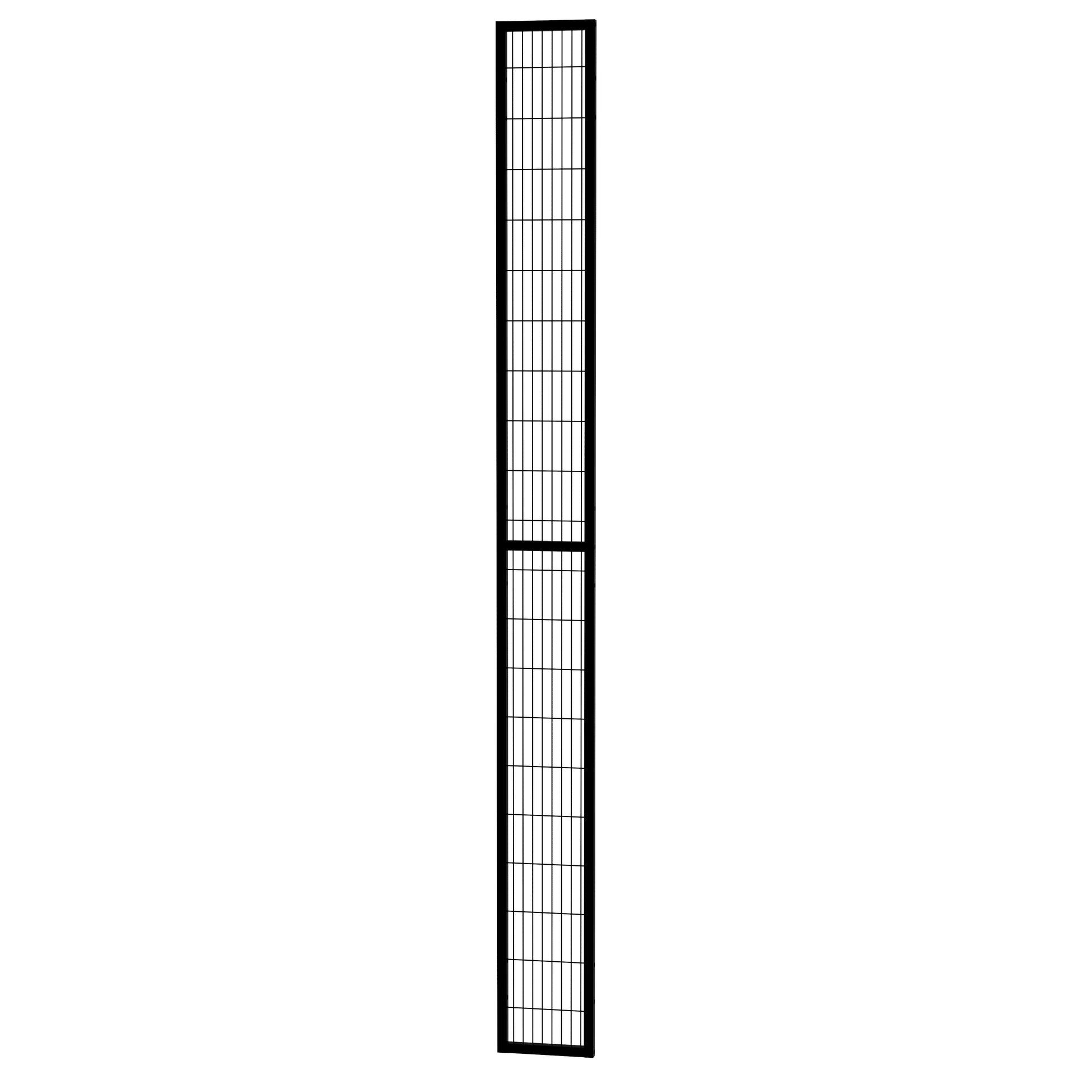

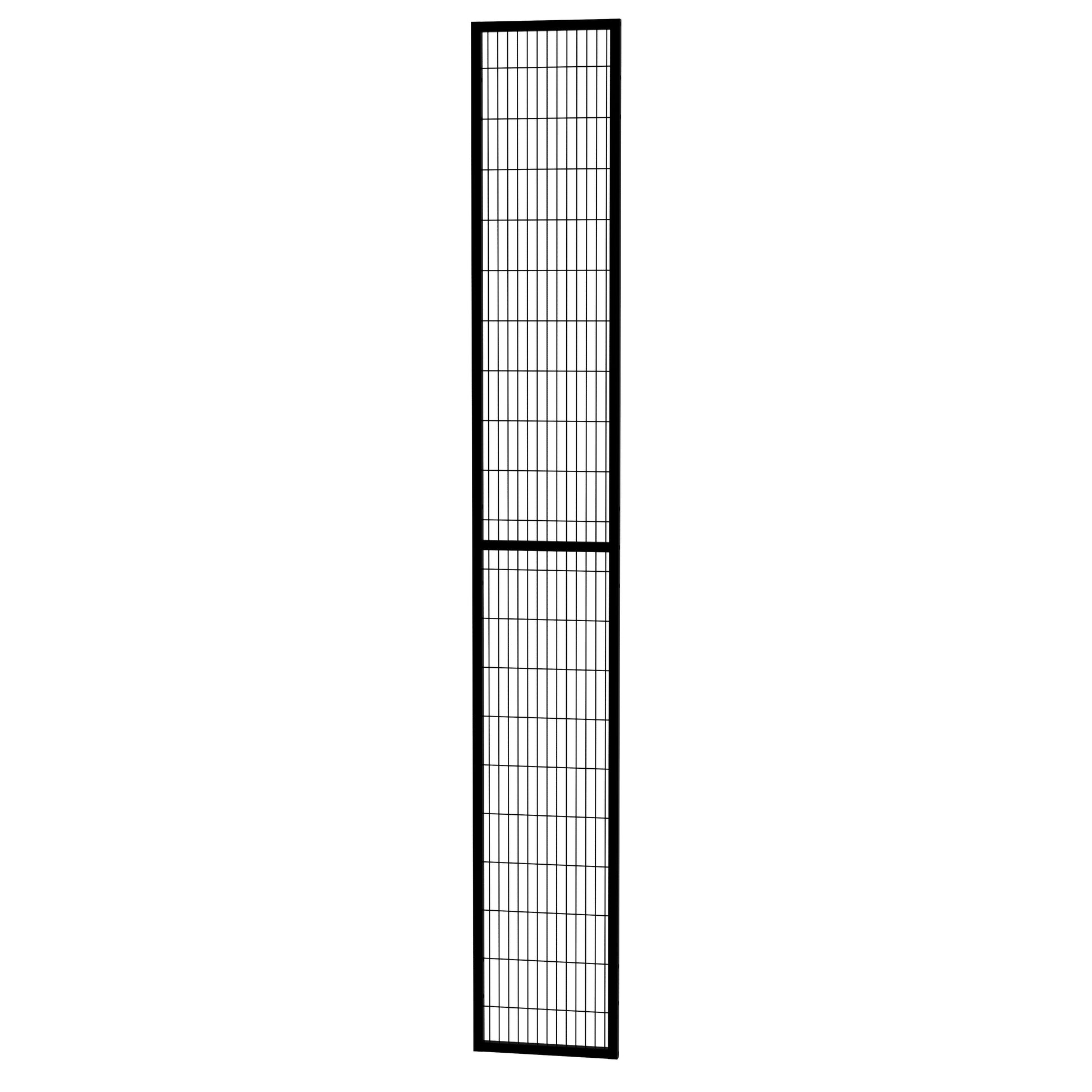

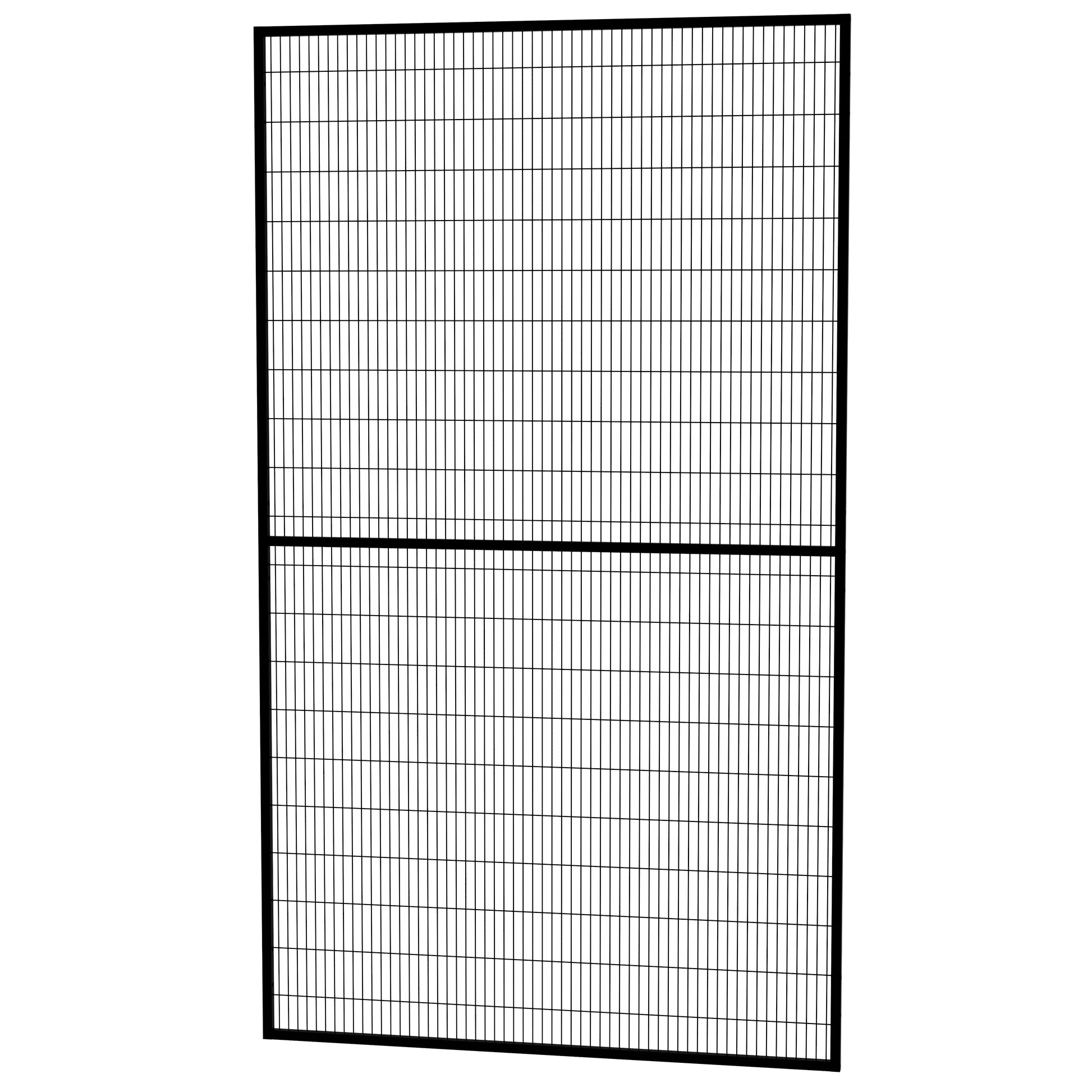

  200 mm, 300 mm, 700 mm, 800 mm, 1000 mm, 1200 mm & 1500 mm
  These can be bolted together to make up sizes such as 500 mm, 900 mm etc.
• Powder coated black RAL 9005.
• Hole centres to enable easily installation with all post, panel and gate combinations.
• Panel bolted into posts.

For further advice, questions, modifications (sizes, cut outs, colour), double sliding gates or more please enquire through the contact page.
