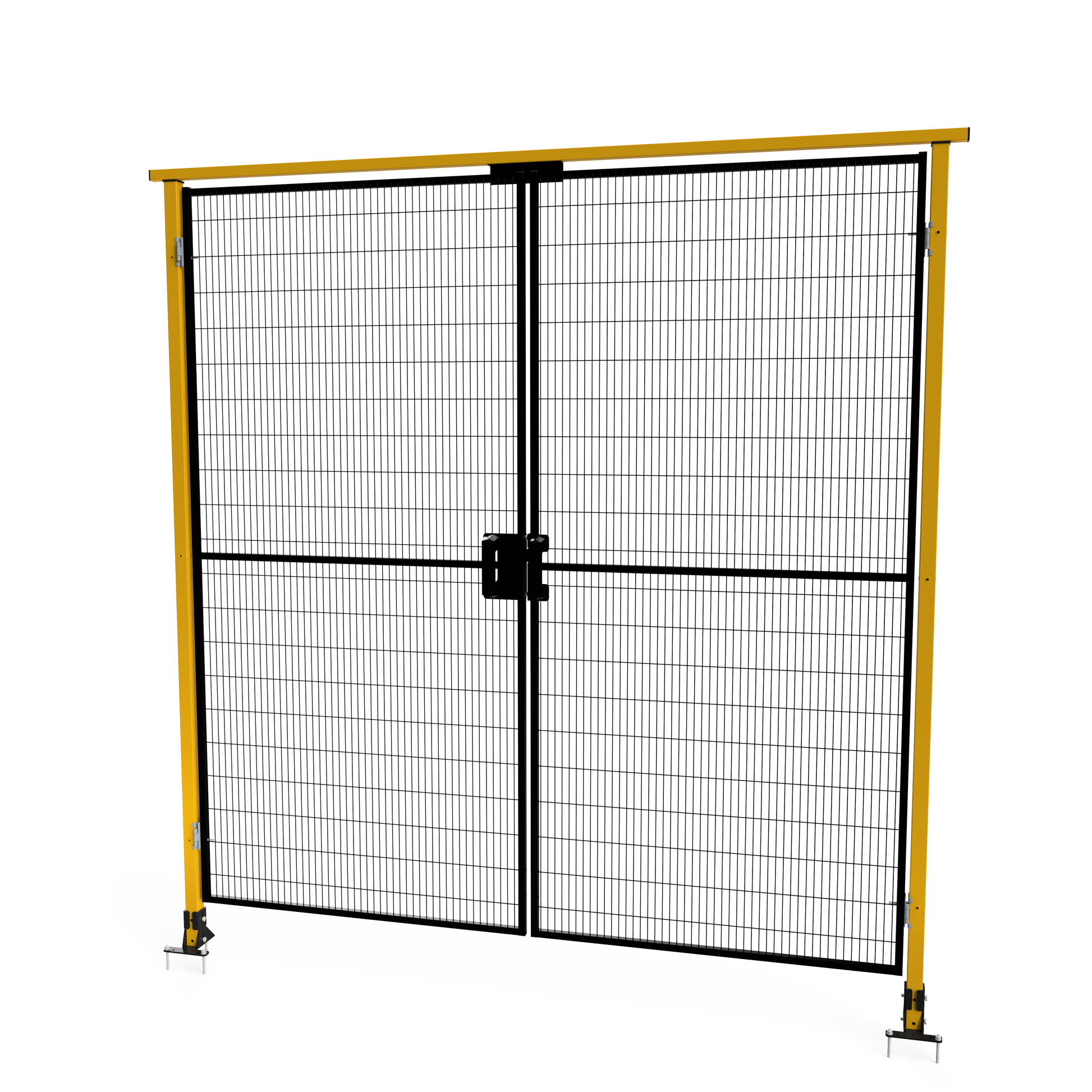

Procter Satech Impact Guard Double Gate

Procter Machine Safety Satech Double Gate

• Gate will come complete with the two gate panels, two gate posts, headrail, two dropbolt, slam plate, handles, magnetic catch and hinges

• This gate will use 2080mm tall panels and 2240mm tall posts.

• Posts and headrail powder coated yellow RAL 1021.
• Panels powder coated black RAL 9005.
• Hole centres to enable easily installation with all post, panel and gate combinations.
• Comes complete with bolted assembly feet.

Gate panel widths are optional, choices being 700mm panels making up 1400mm, 800mm panels making up 1600mm, 1000mm panels making 2000mm, 1200mm panels making up 2400mm and 1500mm panels making up 3000mm.

Gate post width is also optional, choices being 40x40mm posts or 60x60mm posts.

Total Gate width is made up from Panel Widths (e.g. 700mm + 700mm = 1400mm) + Post width (X2) + Door Spacing of 40 mm.

For further advice, questions, modifications (sizes, cut outs, colour), double sliding gates or more please enquire through the contact page.
